4" 5.5HP/415V DG-14 Submersible Bore Pump Package
SKU: EEP024
Pairs well with
4" 5.5HP/415V DG-14 Submersible Bore Pump Package
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Tech Specs

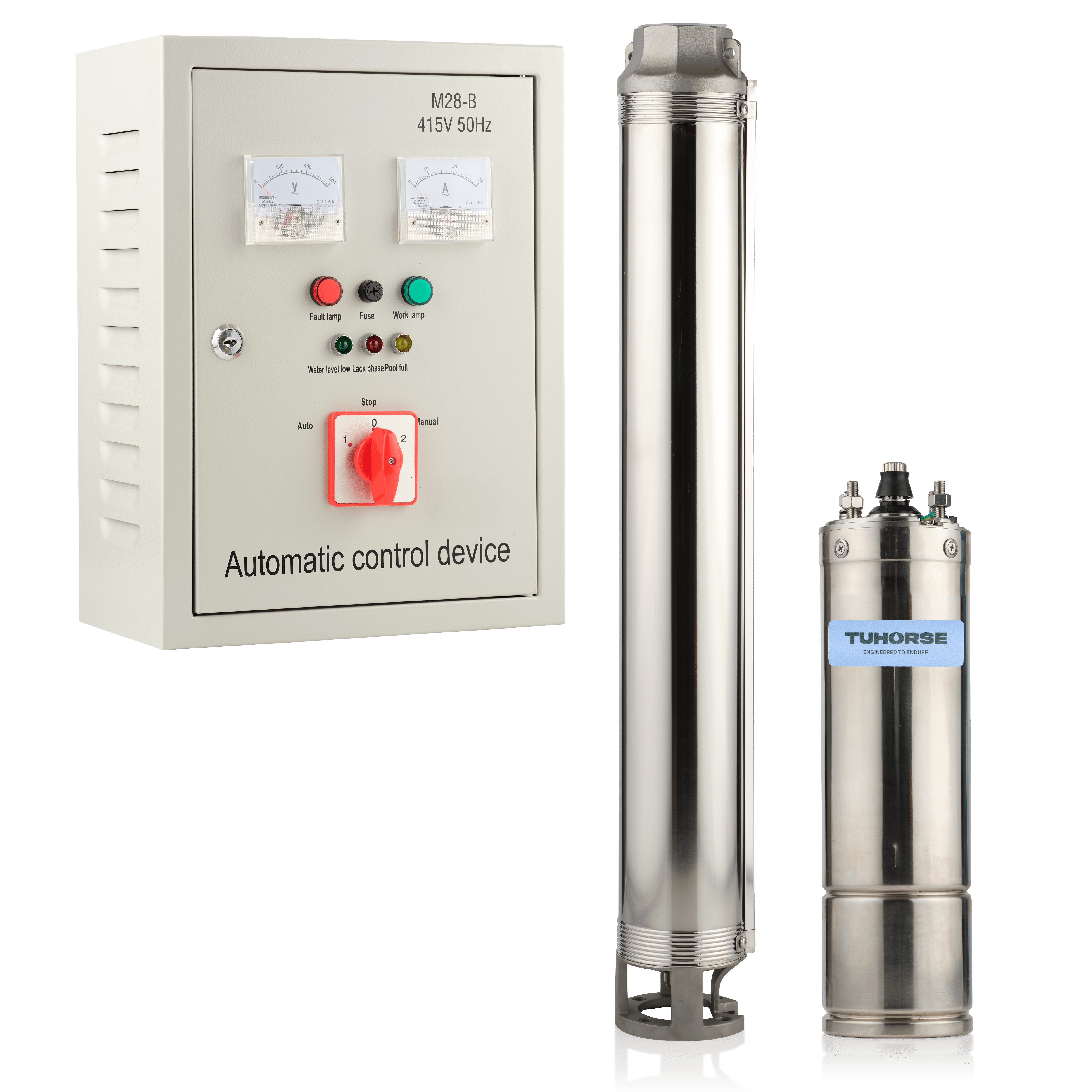

What's in the box and set up requirements

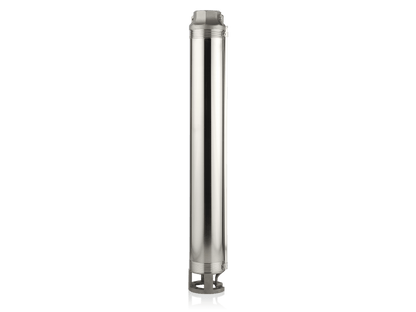

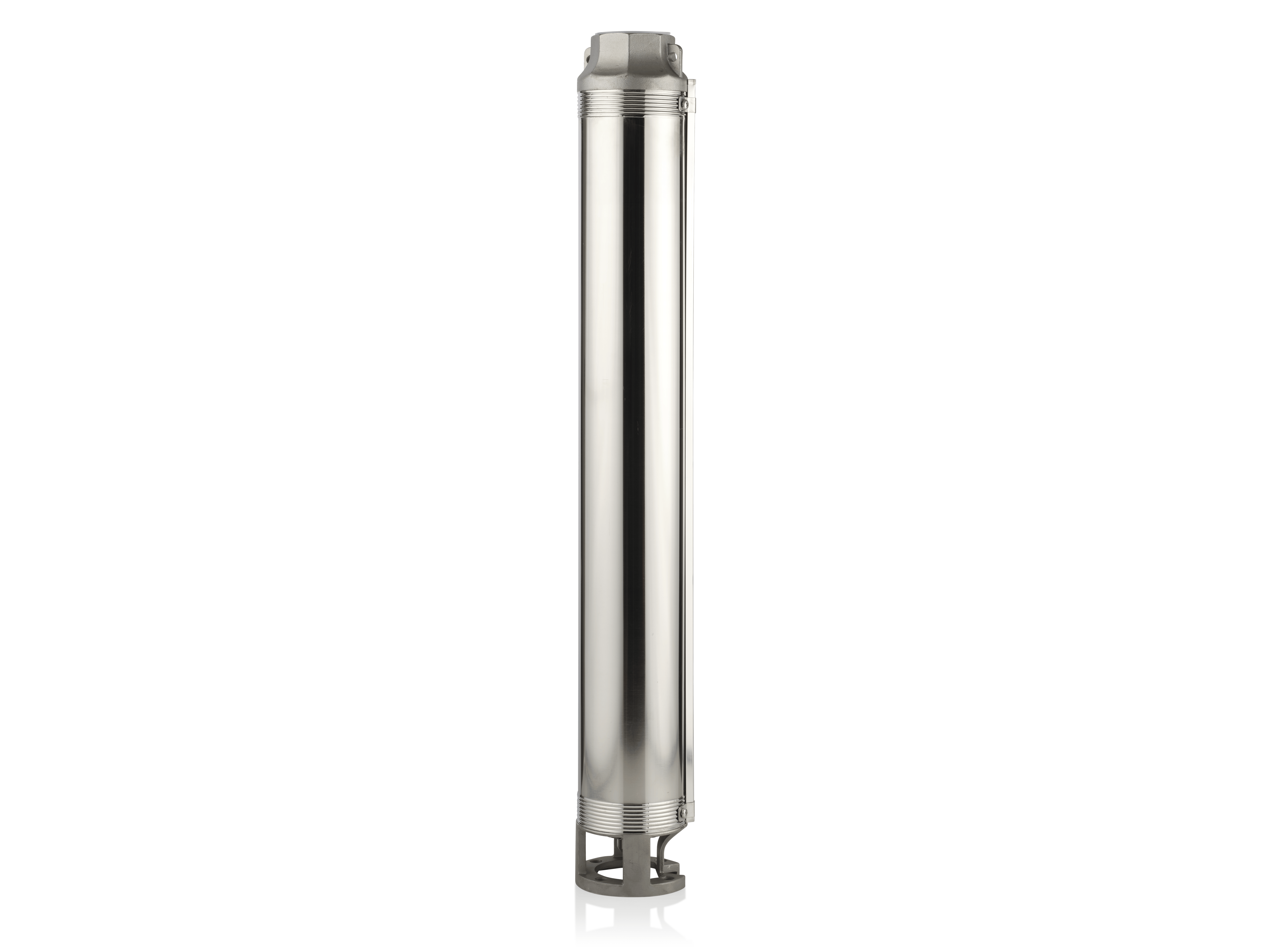

4" 5.5HP 415V/50Hz Motor
Tuhorse DG-14/3HP Pump End
Auto Control box
This pump should be installed by a certified Electrician
Why Choose This Pump?
The 5.5HP motor provides strong pumping capacity, ideal for deep boreholes or high water demand situations.
The 415V 3-phase power supply ensures efficient and stable operation, especially for continuous or heavy-duty use.
The Auto Control Box with 6 water sensors for intelligent water level detection. It automatically shuts off or restarts based on bore or tank levels-no manual monitoring needed.
Pump Specs
| Power: | 5.5HP/4kw |
| Model: | DG-14 |
| Voltage: | Three Phase 415V/50Hz |
| Current: | 10.3A |
| Max Heads: | 83M |
| Max Flow: | 333L/min |
| Inlet/Outlet: | 2" |
| Weight: | 31kg |
| Pump Dimension: | 1821mm x 100mm |
| Warranty: | 12 months return to base warranty in Australia |
Key System Components

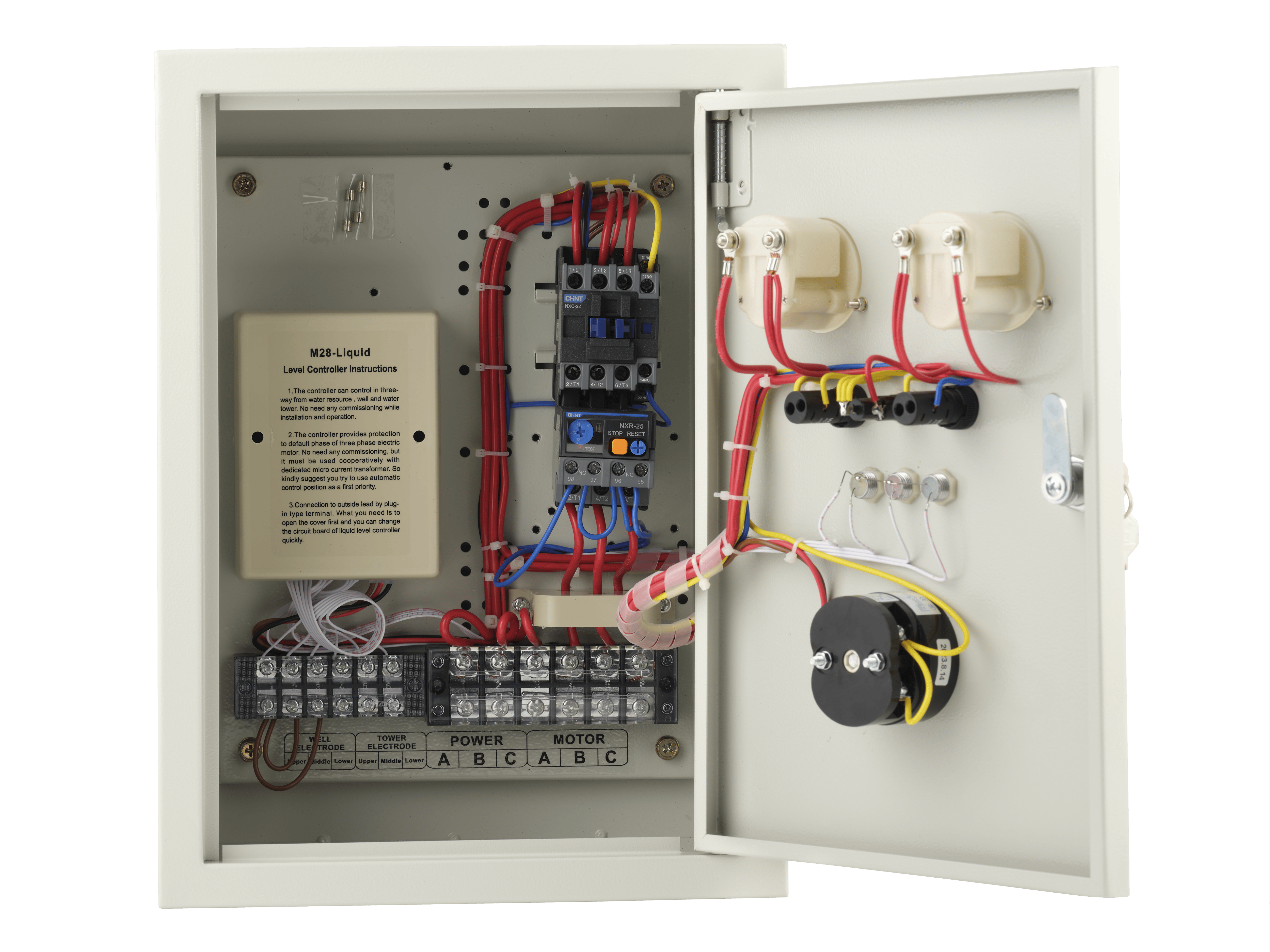

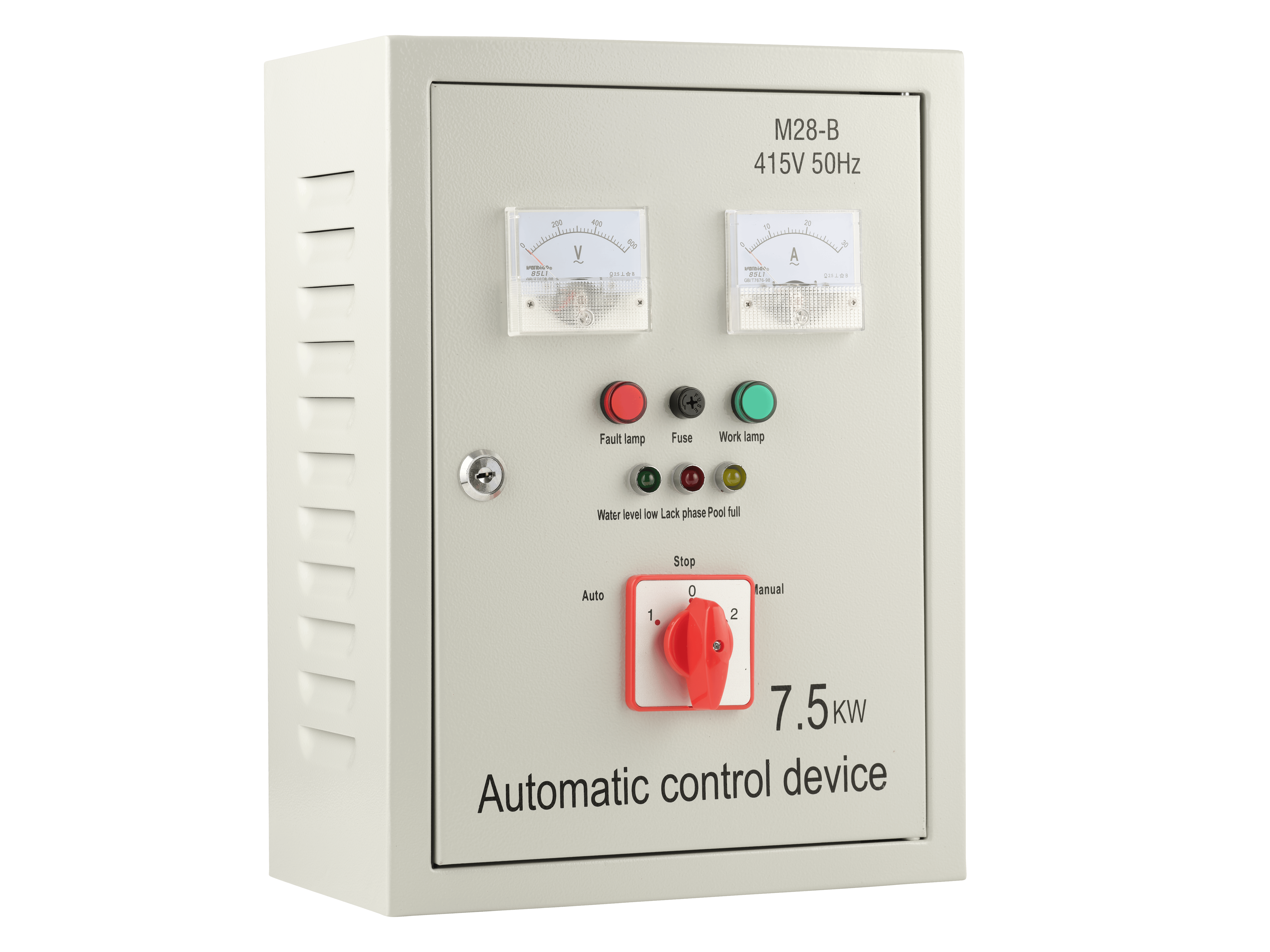

Auto Control Box Specifications
| Power: | 5.5hp/4kw |
| Voltage: | Three phase 415V/50Hz |
| Rated current: | 10A |
| Water sensors voltage: | 10V-12V |
| Control Switch: | Auto/Manual |
This is an automatic control box which is designed for 415V/50Hz three phase pumps. When the automatic control box is installed, the pump will turn on and off automatically according to the water levels of both the tank and the well. If you switch the box to manual, it can work like a starter box.
